Products
Details

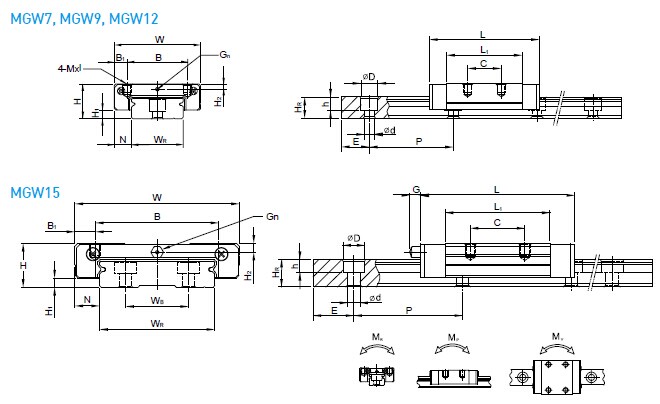

| Model No. | Dimensions of Assembly (mm) |
Dimensions of Block (mm) | |||||||||||
| H | H1 | N | W | B | B1 | C | L1 | L | G | Gn | M×l | H2 | |
| MGW5C | 6.5 | 1.5 | 3.5 | 17 | 13 | 2 | - | 14.1 | 20.5 | - | Ø0.8 | M2.5×1.5 | 1 |
| MGW5CL | - | 8.5 | 6.5 | M3-THRU | |||||||||
| MGW7C | 9 | 1.9 | 5.5 | 25 | 19 | 3 | 10 | 21 | 31.2 | - | Ø1.2 | M3×3 | 1.85 |
| MGW7H | 19 | 30.8 | 41 | ||||||||||
| MGW9C | 12 | 2.9 | 6 | 30 | 21 | 4.5 | 12 | 27.5 | 39.3 | - | Ø1.2 | M3×3 | 2.4 |
| MGW9H | 23 | 3.5 | 24 | 38.5 | 50.7 | ||||||||
| MGW12C | 14 | 3.4 | 8 | 40 | 28 | 6 | 15 | 31.3 | 46.1 | - | Ø1.2 | M3×3.6 | 2.8 |
| MGW12H | 28 | 45.6 | 60.4 | ||||||||||
| MGW15C | 16 | 3.4 | 9 | 60 | 45 | 7.5 | 20 | 38 | 54.8 | 5.2 | M3 | M4×4.2 | 3.2 |
| MGW15H | 35 | 57 | 73.8 | ||||||||||
| Dimensions of Rail (mm) | Mounting Bolt for Rail |
Basic Dynamic Load Rating |
Basic Static Load Rating |
Static Rated Moment |
Weight | Model No. | ||||||||||
| WR | WB | HR | D | h | d | P | E | (mm) | C(kN) | C0 (kN) | MR kN-m |
MP kN-m |
MY kN-m |
Block kg |
Rail kg/m |
|
| 10 | - | 4 | 5.5 | 1.6 | 3 | 20 | 5 | M2.5×7 | 0.68 | 1.18 | 5.5 | 2.7 | 2.7 | 0.016 | 0.34 | MGW5C |
| MGW5CL | ||||||||||||||||
| 14 | - | 5.2 | 6 | 3.2 | 3.5 | 30 | 10 | M3×6 | 1.37 | 2.06 | 15.7 | 7.14 | 7.14 | 0.02 | 0.51 | MGW7C |
| 1.77 | 3.14 | 23.45 | 15.53 | 15.53 | 0.029 | MGW7H | ||||||||||
| 18 | - | 7 | 6 | 4.5 | 3.5 | 30 | 10 | M3×8 | 2.75 | 4.12 | 40.12 | 18.96 | 18.96 | 0.04 | 0.91 | MGW9C |
| 3.43 | 5.89 | 54.54 | 34 | 34 | 0.057 | MGW9H | ||||||||||
| 24 | - | 8.5 | 8 | 4.5 | 4.5 | 40 | 15 | M4×8 | 3.92 | 5.59 | 70.34 | 27.8 | 27.8 | 0.071 | 1.49 | MGW12C |
| 5.1 | 8.24 | 102.7 | 57.37 | 57.37 | 0.103 | MGW12H | ||||||||||
| 42 | 23 | 9.5 | 8 | 4.5 | 4.5 | 40 | 15 | M4×10 | 6.77 | 9.22 | 199.34 | 56.66 | 56.66 | 0.143 | 2.86 | MGW15C |
| 8.93 | 13.38 | 299.01 | 122.6 | 122.6 | 0.215 | MGW15H | ||||||||||
