RE cross roller bearing

RE is an innovative type according to the design theory of RB. The inner ring is separable while the outer ring is integrated with the mail body.

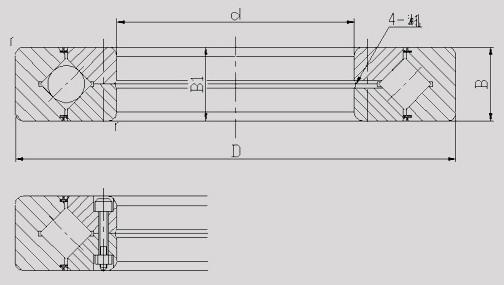

Type Boundary dimensions (mm) Basic rated loading (KN) Weight Equivalent
Inner diameter Outer diameter Width Radial
d D B C Co kg THK
RE2008 20 36 8 3.23 3.1 0.04 RE2008
RE2508 25 41 8 3.63 3.83 0.05 RE2508
RE3010 30 55 10 7.35 8.36 0.12 RE3010
RE3510 35 60 10 7.64 9.12 0.13 RE3510
RE4010 40 65 10 8.33 10.6 0.16 RE4010
RE4510 45 70 10 8.62 11.3 0.17 RE4510
RE5013 50 80 13 16.7 20.9 0.27 RE5013
RE6013 60 90 13 18 24.3 0.3 RE6013
RE7013 70 100 13 19.4 27.7 35 RE7013
RE8016 80 120 16 30.1 42.1 0.7 RE8016
RE9016 90 130 16 31.4 45.3 0.75 RE9016
RE10016 100 140 16 31.7 48.6 0.83 RE10016
RE10020 100 150 20 33.1 50.9 1.45 RE10020
RE11012 110 135 12 12.5 24.1 0.4 RE11012
RE11015 110 145 15 23.7 41.5 0.75 RE11015
RE11020 110 160 20 34 54 1.56 RE11020
RE12016 120 150 16 24.2 43.2 0.72 RE12016
RE12025 120 180 25 66.9 100 2.62 RE12025
RE13015 130 160 15 25 46.7 0.72 RE13015
RE13025 130 190 25 69.5 107 2.82 RE13025
RE14016 140 175 16 25.9 50.1 1 RE14016
RE14025 140 200 25 74.8 121 2.96 RE14025
RE15013 150 180 13 27 53.5 0.68 RE15013
RE15025 150 210 25 76.8 128 3.16 RE15025
RE15030 150 230 30 100 156 5.3 RE15030
RE16025 160 220 25 81.7 135 3.14 RE16025
RE17020 140 220 20 29 62.1 2.21 RE17020
RE18025 180 240 25 84 143 3.44 RE18025
RE19025 190 240 25 41.7 82.9 2.99 RE19025
RE20025 200 260 25 84.2 157 4 RE20025
RE20030 200 280 30 114 200 6.7 RE20030
RE20035 200 295 35 151 252 9.6 RE20035
RE22025 220 280 25 92.3 171 4.1 RE22025
RE24025 240 300 25 68.3 145 4.5 RE24025
RE25025 250 310 25 69.3 150 5 RE25025
RE25030 250 330 30 126 244 8.1 RE25030
RE25040 250 355 40 195 348 14.8 RE25040
RE30025 300 360 25 76.3 178 5.9 RE30025
RE30035 300 395 35 183 367 13.4 RE30035
RE30040 300 405 40 212 409 17.2 RE30040
RE35020 350 400 20 54.1 143 3.9 RE35020
RE40035 400 480 35 156 370 14.5 RE40035
RE40040 400 510 40 241 531 23.5 RE40040
RE45025 450 500 25 61.7 182 6.6 RE45025
RE50025 500 550 25 65.5 201 7.3 RE50025
RE50040 500 600 40 239 607 26 RE50040
RE50050 500 625 50 267 653 41.7 RE50050
RE60040 600 700 40 264 721 29 RE60040
