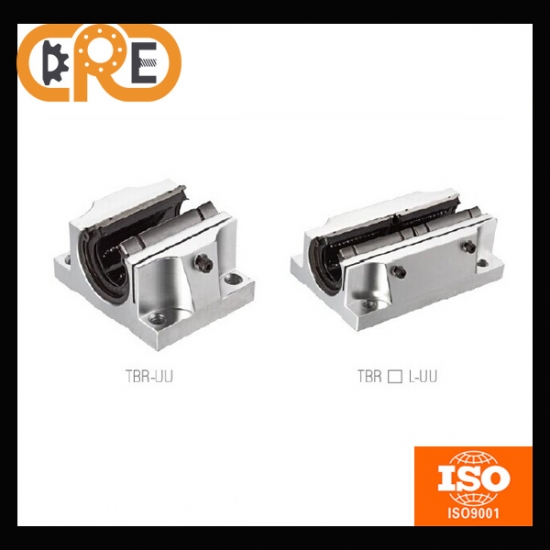

TBR-UU/TBR…L-UU
| Part Number | Main dimensions and Mounting dimensions (mm) | Basic Load Rating | Weight(g) | |||||||||
| h | D | L | W | G | A | B | C | S1 | dyn.c | stat.co | ||
| TBR16UU | 18 | 31 | 42 | 62 | 26 | 8 | 50 | 30 | M5 | 392 | 490 | 180 |
| TBR20UU | 21 | 34 | 51 | 68 | 31 | 10 | 54 | 37 | M6 | 784 | 1176 | 300 |
| TBR25UU | 38 | 41 | 65 | 82 | 41 | 12 | 65 | 50 | M8 | 1568 | 2352 | 600 |
| TBR30UU | 33.5 | 45.5 | 75 | 91 | 48 | 12 | 75 | 60 | M8 | 1764 | 2940 | 900 |
| Part Number | Main dimensions and Mounting dimensions (mm) | Basic Load Rating | Weight(g) | |||||||||
| h | D | L | W | G | A | B | C | S1 | dyn.c | stat.co | ||
| TBR16LUU | 18 | 31 | 85 | 62 | 26 | 8 | 50 | 60 | M5 | 392 | 490 | 180 |
| TBR20LUU | 21 | 34 | 96 | 68 | 31 | 10 | 54 | 70 | M6 | 784 | 1176 | 300 |
| TBR25LUU | 38 | 41 | 130 | 82 | 41 | 12 | 65 | 100 | M8 | 1568 | 2352 | 600 |
| TBR30LUU | 33.5 | 45.5 | 140 | 91 | 48 | 12 | 75 | 110 | M8 | 1764 | 2940 | 900 |
