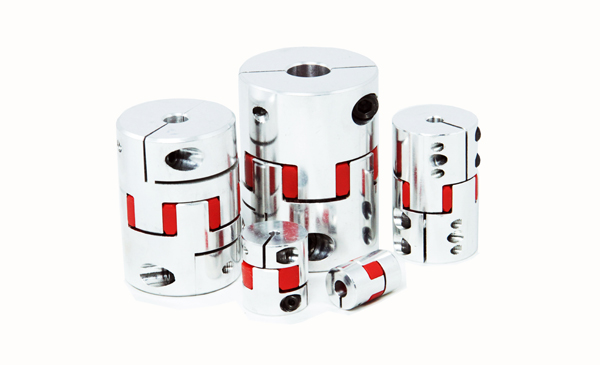

Coupling


♦  Coupling is a mechanism device, connecting transmission between two shafts and transmitting safety torque.

♦  Coupling divided into "Flexible type" and "Rigidity type".

♦  To apply flexible couplings timing in case of power transmission, two shafts are not easy to set in alignment, or to simplify two shafts installation. It contains shock buffer to absorb parallelism, deflection, axial displacement, deviation improvement, and improvement of traditional transmission power, so few deviation would not cause any unusual situation on bearing. It is widely applied to current markets.

♦  Rigidity coupling is a unit causing non-eccentric, non-deflection, and make two connected shafts fixed in one unit. Users must do the best to have motor running and axis of load in alignment due to high requirement of concentricity, also means of axis has to be calibrated strictly; otherwise, the rotating shaft would be broken caused by mechanism fatigue, also the bearing would be thermal abrasion due to eccentric load, those were brought by continuous vibration of the axis during long term running of the motor. The advantage of rigidity couplings is to transmit transmission torque precisely.
Coupling SOL series
Coupling SOL series

SOL Dimension Model No. A I L G M D1*D2standard aperture tolerance(H8) Weight g min max SOL-16 16 7 18 3.5 M3 4 6.35 7 SOL-20 20 9 23 4.5 M4 5 8 14 SOL-25 25 11 18 5.5 M5 5 10 27 SOL-32 32 1...

Hot tags  :  Coupling   flexible coupling   shaft coupling

Coupling SOL-C series
Coupling SOL-C series

SOL-C Dimension Model No. A I L G H M D1*D2standard aperture tolerance(H8) Weight g min max SOL-16C 16 13 29 3 5 M2.5 5 6.35 12 SOL-20C 20 14 33 3 6.5 M3 6 8 19 SOL-25C 25 17 39 3.8 9 M3 6 1...

Coupling SQR-P series
Coupling SQR-P series

SQR-P Dimension Model No. A D1 D2 E H S L M min max min max SQR-40P 40 10 19 10 19 16 25 2 66 6-M4 SQR-55P 55 15 25 15 25 18 30 2 78 4-M5 SQR-65P 65 19 35 19 35 20 35 2.5 90 8-M5 SQR-80P 80 20 40...

Coupling SQR-C series
Coupling SQR-C series

SQR-C Dimension Model No. A B D1 D2 E S L H M min max min max SQR-30C 30 5 6 15 6 15 13 1.5 35 11 M4 SQR-40C 40 8.5 8 20 8 20 16 2 66 25 M5 SQR-55C 55 10.5 10 25 10 25 18 2 78 30 M6 SQR-65C 65 13...

Coupling SQR series
Coupling SQR series

SQR Dimension Model No. A B D1 D2 E S L H M min max min max SQR-30 30 5.5 6 15 6 15 13 1.5 35 11 M4 SQR-40 40 12.5 8 20 8 20 16 2 66 25 M5 SQR-55 55 15 10 25 10 25 18 2 78 30 M5 SQR-65 65 17.5 12...

Coupling SFC-C/SFCS-C series
Coupling SFC-C/SFCS-C series

SFC-C/SFCS-C Dimension Model No. A I L G H M D1*D2standard aperture tolerance(H8) Weight g min max SFC-16C 16 6.5 23 3.25 5 M2.5 4 6 9.2 SFC-20C 20 7.5 26 3.75 6.5 M3 4 8 16 SFC-25C 25 8.5 3...
