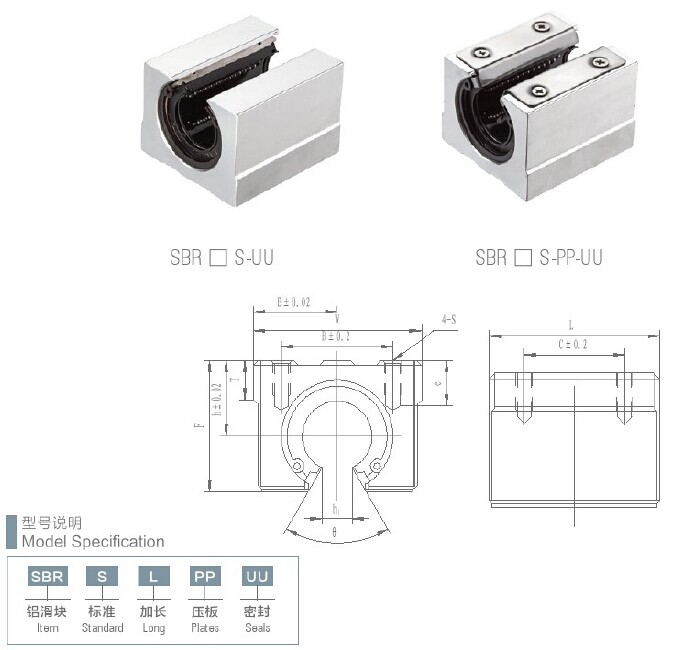

SBR…S-UU/SBR…S-PP-UU
| Part Number | Shaft Diameter |
Main dimensions and Mounting dimensions (mm) | Basic Load Rating | Weight(g) | |||||||||||||
| h | E | W | L | F | T | h1 | θ | B | C | S | e | dyn.c | stat.co | ||||
| SBR10S-UU | SBR10S-PP-UU | 10 | 15 | 18 | 36 | 32 | 24 | 7 | 6 | 80° | 25 | 20 | M5 | 10 | 372 | 549 | 65 |
| SBR12S-UU | SBR12S-PP-UU | 12 | 17 | 20 | 40 | 39 | 27.6 | 8 | 8.5 | 80° | 28 | 26 | M5 | 10 | 500 | 770549 | 100 |
| SBR13S-UU | SBR13S-PP-UU | 13 | 17 | 20 | 40 | 39 | 27.6 | 8 | 8.5 | 80° | 28 | 26 | M5 | 10 | 510 | 784 | 100 |
| SBR16S-UU | SBR16S-PP-UU | 16 | 20 | 22.5 | 45 | 45 | 33 | 9 | 10 | 80° | 32 | 30 | M5 | 12 | 774 | 1180 | 150 |
| SBR20S-UU | SBR20S-PP-UU | 20 | 23 | 24 | 48 | 50 | 39 | 11 | 10 | 60° | 35 | 35 | M6 | 12 | 882 | 1370 | 200 |
| SBR25S-UU | SBR25S-PP-UU | 25 | 27 | 30 | 60 | 65 | 47 | 14 | 11.5 | 50° | 40 | 40 | M6 | 12 | 980 | 1570 | 450 |
| SBR30S-UU | SBR30S-PP-UU | 30 | 33 | 35 | 70 | 70 | 56 | 15 | 14 | 50° | 50 | 50 | M8 | 18 | 1570 | 2740 | 630 |
| SBR35S-UU | SBR35S-PP-UU | 35 | 37 | 40 | 80 | 80 | 63 | 18 | 16 | 50° | 55 | 55 | M8 | 18 | 1670 | 3140 | 920 |
| SBR40S-UU | SBR40S-PP-UU | 40 | 42 | 45 | 90 | 90 | 72 | 20 | 19 | 50° | 65 | 65 | M10 | 20 | 2160 | 4020 | 1330 |
| SBR50S-UU | SBR50S-PP-UU | 50 | 53 | 60 | 120 | 110 | 92 | 25 | 23 | 50° | 94 | 80 | M10 | 20 | 3820 | 7940 | 3000 |
