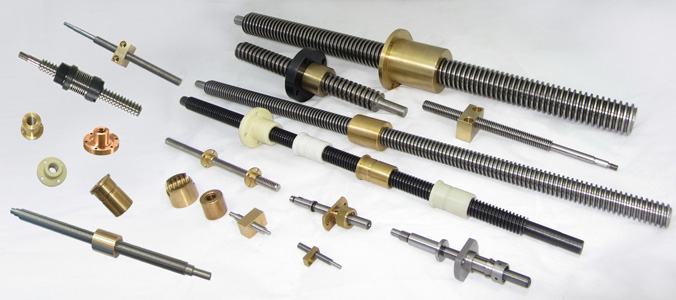

The standard trapezoidal screw commonly used specifications

Unit:mm

Model No.	Pitch	d		d2		d3		Pitch error (mm/300mm)	Straightness (mm/300mm)
Model No.	Pitch	Max	Min	Max	Min	Max	Min	Pitch error (mm/300mm)	Straightness (mm/300mm)
Tr8x1.5	1.5	8	7.85	7.18	7.01	6.29	5.92	0.2	0.3
Tr10x1.5	1.5	10	9.85	9.18	9.01	8.2	7.92	0.2	0.3
Tr10x2	2		9.82	8.93	8.74	7.5	6.89	0.2	0.3
Tr10x3	3		9.8	8.42	8.19	6.5	6.15	0.2	0.3
Tr10x4	2		9.82	8.93	8.74	7.5	6.89	0.3	0.3
Tr12x2	2	12	11.82	10.93	9.84	9.58	8.89	0.2	0.3
Tr12x3	3		11.76	10.42	10.19	8.5	7.69	0.2	0.3
Tr12x6	3		11.76	10.42	10.19	8.5	7.69	0.3	0.3
Tr14x2	2	14	13.82	12.93	12.73	11.5	11.18	0.2	0.3
Tr14x3	3		13.76	12.42	12.19	10.5	10.07	0.2	0.3
Tr14x4	4		13.8	11.91	11.64	9.5	8.8	0.2	0.3
Tr14x6	3		13.76	12.42	12.16	10.5	9.68	0.3	0.3
Tr16x2	2	16	15.82	14.93	14.73	13.5	13.12	0.1	0.3
Tr16x4	4		15.7	13.91	13.64	11.5	10.47	0.1	0.3
Tr16x8	4		15.7	13.91	13.61	11.5	10.47	0.2	0.3
Tr18x2	2	18	17.82	16.93	16.73	15.5	15.12	0.1	0.3
Tr18x4	4		17.7	15.91	15.64	13.5	12.47	0.1	0.3
Tr18x8	4		17.43	15.91	15.61	13.5	12.47	0.2	0.3
Tr20x2	2	20	19.82	18.93	18.73	17.5	17.18	0.1	0.3
Tr20x4	4		19.7	17.91	17.64	15.5	14.47	0.1	0.3
Tr20x8	4		19.7	17.9	17.61	15.5	14.47	0.2	0.3
Tr22x3	3	22	21.76	20.41	20.19	18.5	18.14	0.1	0.2
Tr22x5	5		21.66	19.39	19.11	16.5	15.29	0.1	0.2
Tr22x8	4		21.7	19.9	19.61	17.5	16.47	0.2	0.2
Tr22x10	5		21.66	19.39	19.08	16.5	15.29	0.2	0.2
Tr24x3	3	24	23.76	22.41	22.17	20.5	20.14	0.1	0.2
Tr24x5	5		23.66	21.39	21.09	18.5	17.27	0.1	0.2
Tr24x10	5		23.66	21.39	21.06	18.5	17.27	0.2	0.2
Tr26x3	3	26	25.76	24.41	24.17	22.5	20.14	0.1	0.2
Tr26x5	5		25.67	23.39	23.09	20.5	19.27	0.1	0.2
Tr26x8	4		25.5	21.87	21.49	17	16.4	0.1	0.2
Tr26x10	5		25.67	23.39	23.09	20.5	19.27	0.2	0.2
Tr28x3	5	28	27.76	26.41	26.17	24.5	24.1	0.1	0.2
Tr28x5	5		27.67	25.39	25.09	22.5	21.27	0.1	0.2
Tr28x10	5		27.67	25.39	25.06	22.5	21.27	0.2	0.2
Tr30x3	3	30	29.76	28.41	28.17	26.5	26.4	0.1	0.2
Tr30x6	6		29.63	26.88	26.55	23	21.56	0.2	0.2
Tr32x12	6		29.63	26.88	26.51	23	21.56	0.1	0.2
Tr32x3	3	32	31.76	30.5	30.25	28.5	28.1	0.1	0.2
Tr32x5	5		31.67	29.39	29.09	26.5	25.27	0.1	0.2
Tr32x6	6		31.63	28.88	28.55	25	23.56	0.1	0.2
Tr32x12	6		31.63	28.88	28.51	25	23.56	0.2	0.2
Tr36x6	6	36	35.63	32.88	32.55	29	27.56	0.1	0.2
Tr36x12	6	36	35.63	32.88	32.51	29	27.56	0.2	0.2
Tr40x7	7	40	39.58	36.38	36.02	32	30.38	0.1	0.2
Tr40x14	7	40	39.58	36.38	35.98	32	30.38	0.2	0.2
Tr44x7	7	44	43.57	40.37	40.02	36	34.38	0.1	0.2
Tr44x12	12		43.4	37.84	37.42	31	30.18	0.1	0.2
Tr44x14	7		43.57	40.37	39.98	36	34.38	0.2	0.2
Tr50x8	8	50	49.55	45.87	45.47	41	39.17	0.1	0.2
Tr50x12	12	50	49.4	43.84	43.37	37	36.25	0.1	0.2
Tr55x9	9	55	54.5	55.36	49.94	45	42.98	0.1	0.2
Tr55x14	14	55	54.33	47.82	47.32	39	38.2	0.1	0.2
Tr60x9	9	60	59.5	55.36	54.94	50	47.98	0.1	0.2
Tr60x14	14	60	59.33	52.82	52.32	44	43.2	0.1	0.2
Tr70x10	10	70	69.47	64.85	64.43	59	56.82	0.1	0.4
Tr70x16	16	70	69.29	61.81	61.28	52	51.15	0.1	0.4
Tr80x10	10	80	79.47	74.85	74.43	69	66.82	0.1	0.4
Tr80x16	16	80	79.29	71.81	71.28	62	61.15	0.1	0.4
Tr90x12	12	90	89.4	83.84	83.37	77	74.45	0.1	0.5
Tr90x18	18	90	89.2	80.8	80.24	70	69.1	0.1	0.5
Tr95x12	12	95	94.4	88.84	88.34	82	81.22	0.1	0.5
Tr95x16	16		94.3	88.84	86.25	77	73.71	0.1	1
Tr95x18	18		94.2	85.8	85.2	75	74.05	0.1	1
Tr100x12	12	100	99.4	93.84	93.34	87	86.22	0.1	1
Tr100x16	16		99.29	91.81	91.25	82	78.71	0.1	1
Tr100x20	20		99.15	89.79	89.19	78	77.01	0.1	1
Tr120x14	14	120	119.33	112.82	112.29	104	103.16	0.1	1
Tr120x16	16		119.29	111.81	111.25	102	98.71	0.1	1
Tr120x22	22		119.1	108.78	108.15	96	94.99	0.1	1
