Thrust Ball Bearing

Shipping Port: main ports of china
Payment: T/T,L/C
Lead Time: 7 Days
MiniOrder: 1
Product Origin: China

Details

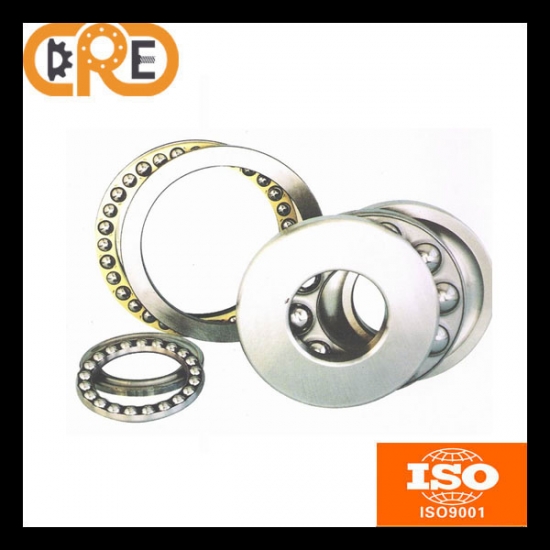

Thrust ball bearings consist of a shaft washer,a housing washer and a ball and cage thrust assembly.The bearings are separable so that mountingg is simple as the washers and the ball and cage assemble can be

mounted separately.Thrust ball bearings ,as their name suggests,can accommodate axial loads in one

direction and thus locate a shaft axially in one direction.They must not be subjected to any radial load.

Number	Dimensions (mm)		Basic load rating (KN)		Speed ratings (rpm)		Weight (kg)
	d	D
			Dynamic	Staitc	Grease	Oil
51414M	70	150	194	343	950	1400	5.06
51415	75	160	225	429	850	1300	6.61
51416	80	170	239	475	850	1300	7.89
51417	85	180	254	523	850	1300	8.35
51418M	90	190	287	609	800	1200	9.91
51420	100	210	338	759	750	1100	13.6
51222	110	160	128	385	1100	1600	2.34
51322M		190	229	576	850	1200	7.36
52322		190	235	590	0	0	13.22
51422M		230	369	882	630	900	18.6
51224	120	170	126	391	1100	1900	2.58
51224/P6		170	126	391	1100	1600	2.58
51324M		210	263	697	800	1100	9.85
51326M	130	225	297	826	800	1100	12.5
51426M		270	480	1258	630	900	29
51228	140	200	170	532	950	1400	4.49
51228/P6		200	170	531	950	1400	4.49
51228/P5		200	170	532	950	1400	4.49
53228U		210	0	0	0	0	5.92
51382		240	313	905	750	1100	14.6
51428M	140	280	473	1290	630	900	31.6
51230	150	215	198	638	950	1400	5.8
51130M		190	90	371	1200	1700	2.19
51130M/P6		190	90	371	1200	1700	2.19
51130M/P5		190	90	371	1200	1700	2.19
51130M/P4		190	90	371	1200	1700	2.19
51430M		300	323	1001	630	900	17
51430M		300	508	1450	500	670	38.7
51332M	160	200	91	391	1200	1700	2.38
51232M		225	201	680	850	1300	6.19
51232M/P6		225	201	680	850	1300	6.19
51232m/P5		240	201	680	850	1300	6.19
51332M		270	343	1075	630	900	18.8
51134M	170	215	99	414	1200	1700	2.99
51234M		240	212	730	800	1200	7.65
51234M/P5		240	212	730	800	1200	7.65
51334M		280	356	1242	630	900	19.9
51136M	180	225	114	490	1100	1600	2.99
51236M		250	222	808	800	1100	7.56
52236M		250	227	825	0	0	19.9
51336M		300	388	1407	600	800	19.9
51138	190	240	134	580	1000	1500	2.86
51238		270	270	999	800	1100	8.02
51338M		320	458	1630	560	750	26.7
51140M	200	250	138	623	950	1400	3.6
51240		280	265	1008	750	1000	11.5
51340M		340	498	1828	480	630	30.8
51144	220	270	140	668	850	1200	4.45
51144/P5		270	140	668	850	1200	4.45
51244		300	276	1125	700	950	12.9
		300	301	1278	650	900	19.8
51344		360	0	0	0	0	45.8
51148	240	300	195	908	700	1000	7.28
51248		340	342	1453	630	860	21.1
51248/P6		340	342	1453	630	860	21.1
51248/P5		340	342	1453	630	860	21.1
51348		380	522	2180	500	700	49.6
51948		340	315	1364	600	800	18.8
51152	260	320	199	974	650	900	7.56
51252		360<, /P>	358	1618	560	750	23.3
51156	280	350	254	1249	630	850	11.4
51256		380	371	1785	560	750	25.3
51256/P6		380	371	1785	560	750	25.3
51265/P5		380	371	1785	560	750	25.3
51160	300	380	314	1602	630	850	17.4
51260		420	444	220	480	630	40
51164	320	400	321	1721	600	800	18
51264	320	440	0	0	0	0	44.1
51168	340	420	317	1734	600	800	19.9
51268		460	456	2455	450	600	44.6
51368		540	846	4350	380	500	137
	350	476	476	2663	450	600	43.6
51172	360	440	325	1853	560	750	23.9
51272		500	598	3519	400	530	64.7
51280		540	0	0	0	0	72
51292	460	620	674	4414	380	500	113
51292/P5		620	674	4414	380	500	113
512/500	500	670	735	5050	0	0	136
512/560	560	750	0	0	0	0	182
511/600	600	710	545	4356	380	500	64.9
		630	683	5405	320	430	118
512/630		850	0	0	0	0	0
511/670F3	670	800	669	5658	300	400	109
