Details
Type | GSB35BA GSB35BAL | GSB45BA GSB45BAL | GSB55BA GSB55BAL | |
Assembly dimension | H | 55 | 70 | 80 |
W | 18 | 20.5 | 23.5 | |
Dimension of block | B1 | 70 | 86 | 100 |
B3 | 50 | 60 | 75 | |
K | 45 | 61 | 67 | |
T | 10 | 15 | 18 | |
M×L0 | M8×9 | M10×14.5 | M12×17 | |
L1 | 116 140 |
142 183 |
165 203 |
|
L2 | 81 105 |
102 140 |
118 156 |
|
L3 | 50 72 |
60 80 |
75 95 |
|
B2 | 10 | 13 | 12.5 | |
Rail dimension | B4 | 34 | 45 | 53 |
H1 | 29 | 32 | 44 | |
dxDxh | 9x14x12 | 14x20x16 | 16x23x20 | |
F | 80 | 105 | 120 | |
Max. single length | 6000 | 6000 | 6000 | |
Oil cup dimension | G | M6 | M8X1 | M8X1 |
L4 | 11 | 11 | 14 | |
N | 8 | 12 | 12 | |
Dynamic load | C(KN) | 40.15 51.29 |
68.26 87.09 |
102.75 135.67 |
Static load | C0(KN) | 93.29 124.39 |
129.62 164.18 |
193.95 258.6 |

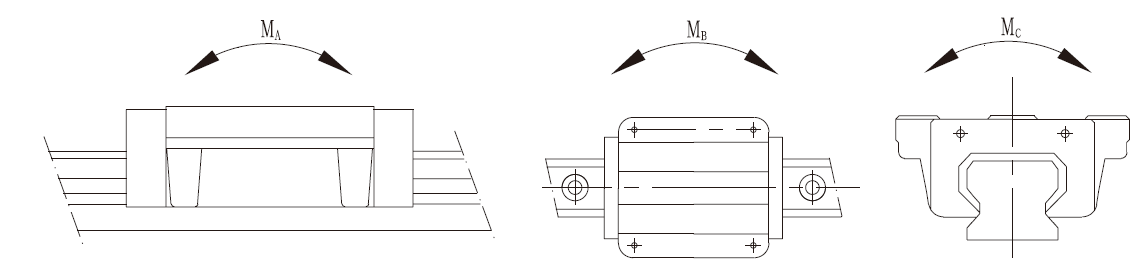

Torque rating | MA(N.m) | 980 1680 |
1760 2710 |
3110 5230 |
MB(N.m) | 980 1680 |
1760 2710 |
3110 5230 |
|
MC(N.m) | 1580 2100 |
2850 3610 |
5150 6870 |
|
Block weight | kg | 2 2.3 |
3.5 3.9 |
4.4 5.9 |
Rail weight | Kg/m | 6.4 | 9.7 | 14.7 |
Notes: L1 dimensions are based on MN seal type, details see seal type.
