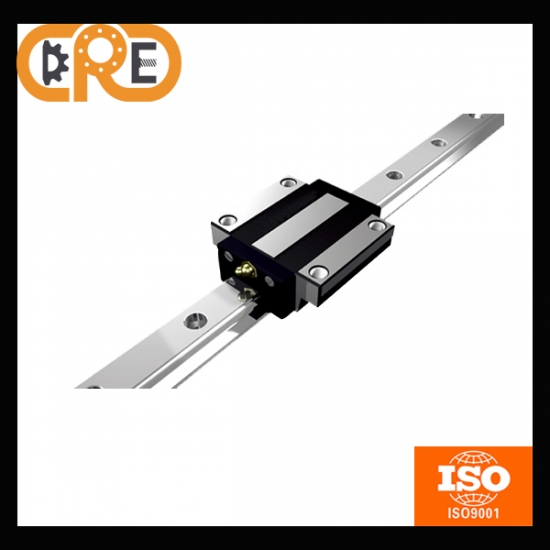

Type		GSB35AA GSB35AAL	GSB45AA GSB45AAL	GSB55AA GSB55AAL
Assembly dimension	H	48	60	70
	W	33	37.5	43.5
Dimension of block	B1	100	120	140
	B3	82	100	116
	K	38	51	57
	T	13	15	17
	T1	21	18	29
	M	10	12	14
	Φ	8.5	10.5	12.5
	L0	13	15	17
	L1	116 140	142 183	165 203
	L2	81 105	102 140	118 156
	L3	62	80	95
Rail dimension	B4	34	45	53
	H1	29	32	44
	dxDxh	9x14x12	14x20x16	16x23x20
	F	80	105	120
	Max. single length	6000	6000	6000
Oil cup dimension	G	M6	M8X1	M8X1
	L4	11	11	14
	N	8	12	12
Dynamic load	C(KN)	40.15 51.29	68.26 87.09	102.75 135.67
Static load	C0(KN)	93.29 124.39	129.62 164.18	193.95 258.6
Torque rating	MA(N.m)	980 1680	1760 2710	3110 5230
	MB(N.m)	980 1680	1760 2710	3110 5230
	MC(N.m)	1580 2100	2850 3610	5150 6870
Block weight	kg	1.4 1.9	3 3.8	4.2 5.7
Rail weight	Kg/m	6.4	9.7	14.7

Notes:
1. L1 dimensions are based on MN seal type, details see seal type.
2. AA/AAL blocks of GSB series are flange type and top mounting holes are thread holes,up-lock see dimension M,down-lock see dimension Φ.
