PM86 standard linear module (with

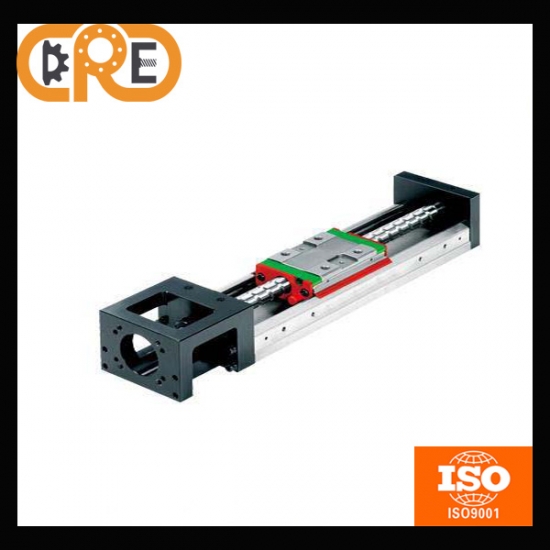

PM86 standard linear module (with cover)

Details

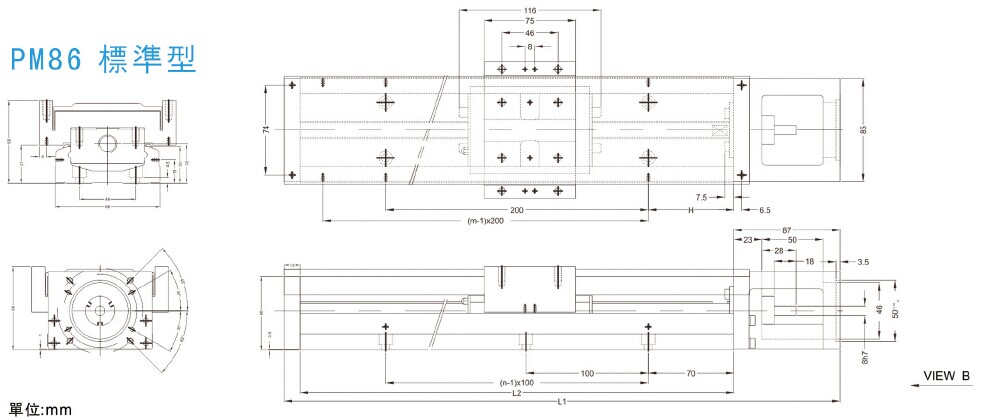

PM86(Standard)

Rail Length L2(mm)	Total Length L1(mm)	Maximum Stroke(mm)		H(mm)	n	m		Mass(kg)
Rail Length L2(mm)	Total Length L1(mm)	A1 Block	A2 Block	H(mm)	n	m		A1 Block	A2 Block
340	440	210	100	70	3	2		6.5	7.3
440	540	310	200	20	4	3		7.8	8.6
540	640	410	300	70	5	3		9	9.8
640	740	510	400	20	6	4		10.3	11.3
740	840	610	500	70	7	4		11.6	12.4
940	1040	810	700	70	9	5		13	13.8
