XR series taper cross roller bearings are similar to RB and CRE series cylindrical cross roller bearing in structure. XR series has two separable outer rings or inner rings.

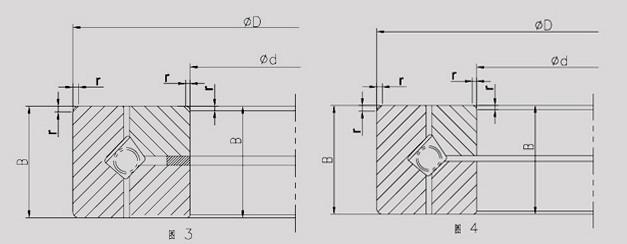

| Type | Boundary dimensions | equivalent | ||||||
| d | D | B | r | TIMKEN | SKF | NACHI | URB | |
| XR060-NT | 150 | 230 | 30 | 1 | BFKB353243/HA4 | |||
| XR063-NT | 160 | 240 | 30 | 1.1 | BFKB353240/HA4 | |||
| XR079-NT | 200 | 280 | 30 | 1.5 | 200XRN28 | |||
| XR080-NT | 203.2 | 279 | 31.75 | 1.5 | XR496051 | 616093A | ||
| XR080-W | 203.2 | 279 | 31.75 | 1.5 | XR496052 | |||
| XR094-NT | 240 | 300 | 30 | 1 | BFK353203/HA4 | |||
| XR098-NT | 250 | 310 | 25 | 1 | BFK353212/HA4 | |||
| XR099-NT | 250 | 350 | 40 | 1.3 | BFK353215/HA4 | 250XRN35 | ||
| XR110NTL | 300 | 400 | 36.492 | 1.5 | JXR637050 | |||
| XR110-NT | 300 | 400 | 37 | 1.5 | XR635070 | 616094A | 300XRN50 | |
| XR110-NF | 300 | 480 | 60 | 1.5 | JXR678054 | |||
| XR120-NT | 310 | 425 | 45 | 2.5 | JXR652050 | BFKB634097 | 350XRN47 | |
| XR130-NT | 330 | 457 | 63.5 | 3.3 | XR678052 | 615661A | ||
| XR138-NT | 350 | 470 | 50 | 3.3 | ||||
| XR140-NT | 370 | 495 | 50 | 3.3 | JXR699050 | |||
| XR157-NT | 400 | 480 | 40 | 1.1 | BFKB353224/HA4 | |||
| XR158-NT | 400 | 550 | 60 | 2.5 | BFKB353219/HA4 | 400XRN55 | ||
| XR170-NT | 432.03 | 571.5 | 38.1 | 3.3 | XR736052 | |||
| XR180-NT | 457.2 | 609.6 | 63.5 | 3.3 | XR766051 | 615894A | 0457XRN060 | XD.10.0457P5 |
| Type | Boundary dimensions (mm) | equivalent | ||||||
| d | D | B | r | TIMKEN | SKF | NACHI | URB | |
| XR160-NT | 424.95 | 614.924 | 65 | XR766052 | ||||
| XR220-NT | 580 | 760 | 80 | 3.3 | XR820060 | 615662A | 580XRN76 | XD.10.0580P5 |
| XR220-W | 580 | 760 | 80 | 6.4 | XR820061 | |||
| XR230-NF | 600 | 830 | 80 | 6.4 | XR836050 | 600XRN83 | ||
| XR270-N | 685.8 | 914.4 | 79.375 | 6.4 | RA844050 | |||
| XR270-NT | 685.8 | 914.4 | 79.375 | 3.3 | XR855053 | 615659A | 0685XRN091 | XD.10.0686P5 |
| XR270-W | 685.8 | 914.4 | 79.375 | XR855056 | ||||
| XR350-W | 901.7 | 1117.6 | 82.555 | 3.3 | XR882054 | |||
| XR350NT | 901.7 | 1117.6 | 82.555 | 3.3 | XR882055 | 615895A | 091XRN112 | XD.10.0902P5 |
| XR370-N | 939.8 | 1117.6 | 82.55 | 3 | XR882058 | |||
| XR374-NF | 950 | 1170 | 85 | 3.3 | BFKB353251/HA4 | |||
| XR400-NT | 1028.7 | 1327.15 | 114.3 | 3.3 | XR889058 | BFKB353281/HA4 | 1028XRN132 | XD.10.1029P5 |
| XR400-WL | 1028.7 | 1327.15 | 95.25 | 3.3 | XR889059 | |||
| XR400-NF | 1028.7 | 1327.15 | 114.3 | 3.3 | XR889060 | |||
| XR500-NT | 1270 | 1524 | 95.25 | 1.8 | 615897A | |||
| XR610-NT | 1549.4 | 1828.8 | 101.6 | 3.3 | XR897051 | 615898A | XD.10.1549P5 | |
| XR740-NT | 1879.6 | 2197.1 | 101.6 | 5.4 | XR903054 | 615899A | XD.10.1880P5 | |
| XR1040NT | 2463.8 | 2819.4 | 114.3 | 5.4 | XR902050 | 634078A | ||
