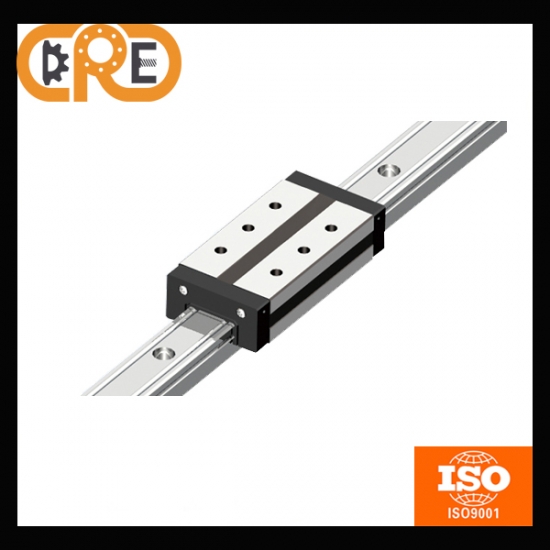

Type | GGD35BA/GGD35BAL | GGD45BA/GGD45BAL | GGD55BA/GGD55BAL | GGD65BAL | |
Dimension of assembly | H | 44 | 52 | 63 | 75 |
W | 18 | 20.5 | 23.5 | 31.5 | |
Dimension of Block | B1 | 70 | 86 | 100 | 126 |
B3 | 50 | 60 | 65 | 76 | |
K | 35 | 43.1 | 49 | 60 | |
T | 12 | 14.7 | 17.7 | 21 | |
MxL0 | M8x12 | M10x15 | M12x17 | M16x20 | |
L1 | 116.4/138.4 | 143/174 | 166/203 | 257.2 | |
L2 | 86/108 | 106/137 | 124/161 | 207 | |
L3 | 50/72 | 60/80 | 75/95 | 110 | |
Dimension of Rail | B2 | 34 | 45 | 53 | 63 |
H1 | 24.2 | 29 | 36.5 | 43 | |
dxDxh | 9x14x12 | 14x20x16 | 16x23x20 | 18x26x22 | |
F | 80 | 105 | 120 | 150 | |
LMAX | 6000 | 6000 | 6000 | 6000 | |
Dimension of oil cup | G | M6 | M8 | M8 | M8 |
P | 8.8 | 15 | 15 | 15 | |
N | 8 | 10 | 11 | 16 | |
Dynamic load rating | C(KN) | 76/91 | 112/133 | 143/174 | 279 |
Static load rating | C0(KN) | 121/167 | 183/235 | 244/321 | 481 |
Torque rating | MA(N.m) | 1338/2258 | 2767/4566 | 4255/7142 | 13022 |
MB(N.m) | 855/1416 | 1725/2844 | 2642/4435 | 8363 | |
MC(N.m) | 1807/2366 | 3569/4777 | 5684/7420 | 13143 |
Note:
1. L1 dimension is for the normal seal type MN, details please see seal type.
2. GGD series BA/BAL block is the flange type, and top mount hole is screw hole.
3. Above figs are the side-view of standard block BA and lengthen BAL type.
4. Please note if need oil of side surface.
