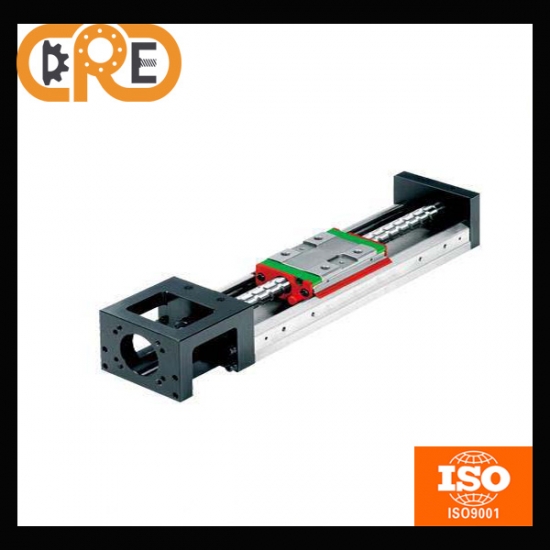

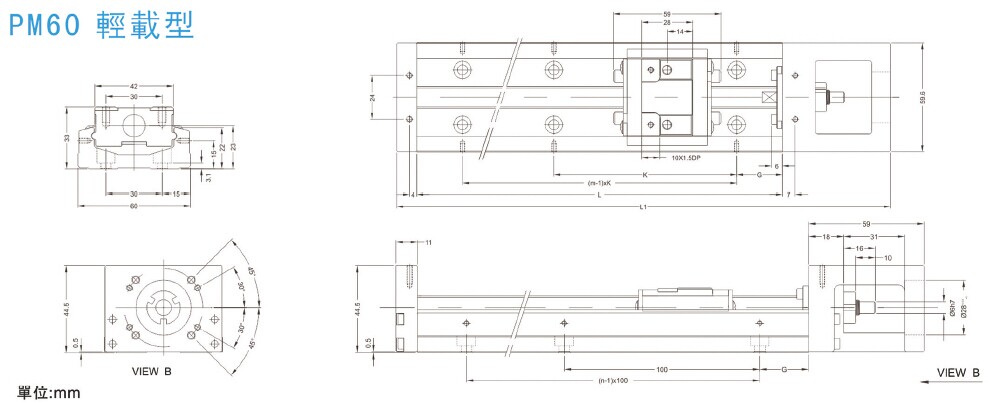

PM (Light Duty)
Rail Length L2(mm) |
Total Length L1(mm) |
Maximum Stroke(mm) | G(mm) | K(mm) | n | m | Mass(kg) | ||
S1 Block | S2 Block | S1 Block | S2 Block | ||||||
150 | 220 | 85 | 34 | 25 | 100 | 2 | 2 | 1.4 | 1.6 |
200 | 270 | 135 | 84 | 50 | 100 | 2 | 2 | 1.7 | 1.9 |
300 | 370 | 235 | 184 | 50 | 200 | 3 | 2 | 2.3 | 2.5 |
400 | 470 | 335 | 284 | 50 | 100 | 4 | 4 | 2.9 | 3.1 |
500 | 570 | 435 | 384 | 50 | 200 | 5 | 3 | 3.5 | 3.7 |
600 | 670 | 535 | 484 | 50 | 100 | 6 | 6 | 4.1 | 4.3 |
