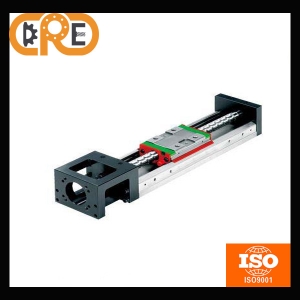

PM60 standard linear module

Details

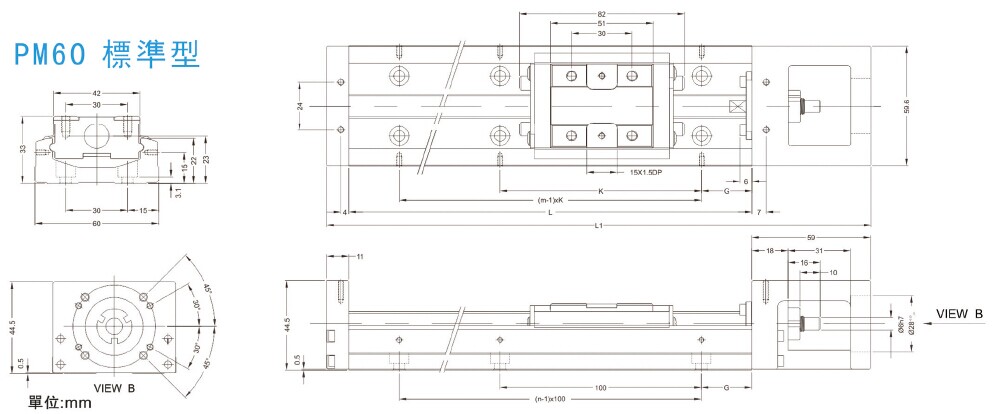

PM60 (Standard)



Rail Length
L2(mm)
Total Length
L1(mm)
Maximum Stroke(mm) G(mm) K(mm) n m Mass(kg)
A1 Block A2 Block A1 Block A2 Block
150 220 60 - 25 100 2 2 1.5 -
200 270 110 - 50 100 2 2 1.8 -
300 370 210 135 50 200 3 2 2.4 2.7
400 470 310 235 50 100 4 4 3 3.3
500 570 410 335 50 200 5 3 3.6 3.9
600 670 510 435 50 100 6 6 4.2 4.6
