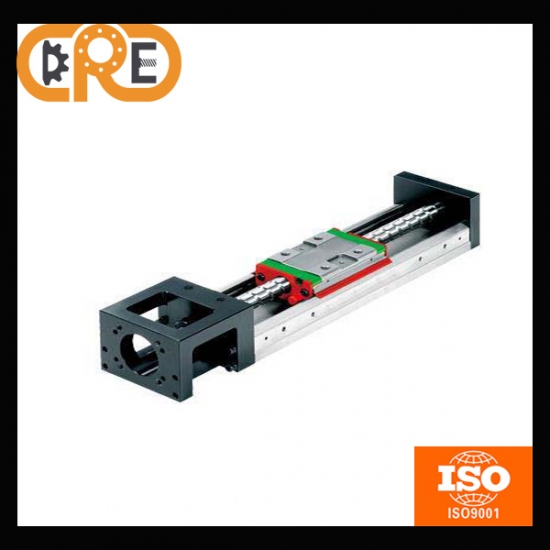

PM86 stardard linear module

PM86 stardard linear module

Details

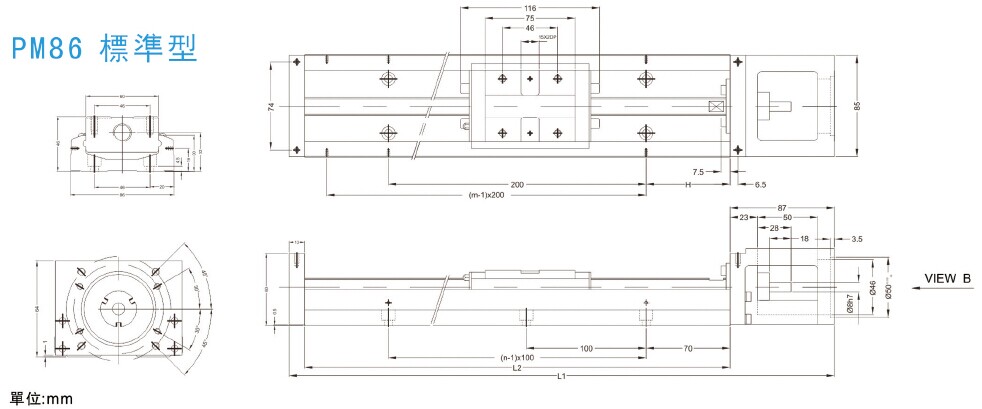

PM86(Standard)

Rail Length L2(mm)	Total Length L1(mm)	Maximum Stroke(mm)		H(mm)	n	m		Mass(kg)
Rail Length L2(mm)	Total Length L1(mm)	A1 Block	A2 Block	H(mm)	n	m		A1 Block	A2 Block
340	440	210	100	70	3	2		5.7	6.5
440	540	310	200	20	4	3		6.9	7.7
540	640	410	300	70	5	3		8	8.8
640	740	510	400	20	6	4		9.2	10
740	840	610	500	70	7	4		10.4	11.2
940	1040	810	700	70	9	5		11.6	12.4
