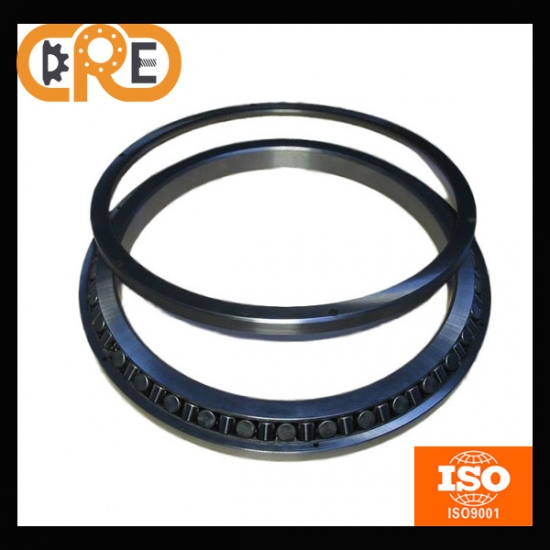

RC series cylindrical cross roller bearing is similar to RB series. The two separable outer rings are connected by cirlips.

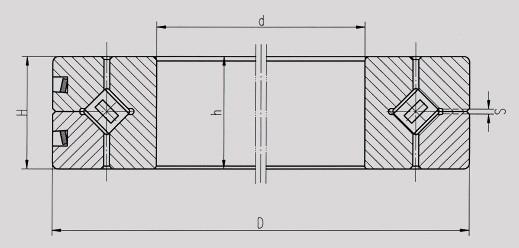

| Type | Boundary dimensions (mm) | Basic rated loading (KN) | Weight | equivalent | ||||||
| Axial | Radial | |||||||||
| d | D | H | h | Ca | Coa | Cr | Cor | kg | INA | |
| RC7010 | 70 | 90 | 10 | 10 | 18 | 60 | 12 | 30 | 0.3 | SX011814 |
| RC9013 | 90 | 115 | 13 | 13 | 26 | 96 | 17 | 47 | 0.4 | SX011818 |
| RC10013 | 100 | 125 | 13 | 13 | 28 | 106 | 18 | 52 | 0.5 | SX011820 |
| RC12016 | 120 | 150 | 16 | 16 | 41 | 153 | 26 | 75 | 0.8 | SX011824 |
| RC14018 | 140 | 175 | 18 | 18 | 64 | 237 | 41 | 116 | 101 | SX011828 |
| RC16020 | 160 | 200 | 20 | 20 | 69 | 272 | 44 | 133 | 1.7 | SX011832 |
| RC18022 | 180 | 225 | 22 | 22 | 98 | 381 | 63 | 187 | 2.3 | SX011836 |
| RC20024 | 200 | 250 | 24 | 24 | 106 | 425 | 68 | 208 | 3.1 | SX011840 |
| RC24028 | 240 | 300 | 28 | 28 | 149 | 612 | 95 | 300 | 5.3 | SX011848 |
| RC30038 | 300 | 380 | 38 | 38 | 245 | 1027 | 156 | 504 | 12 | SX011860 |
| RC34038 | 240 | 420 | 38 | 38 | 265 | 1148 | 167 | 363 | 13.5 | SX011868 |
| RC40046 | 400 | 500 | 46 | 46 | 385 | 1699 | 244 | 833 | 24 | SX011880 |
Note 1: in the high-precision, please use the inner ring rotation way.
Note 2: RC series no seal structure
Note 3: with the preload nominal model is XRS***VSP.
