Details

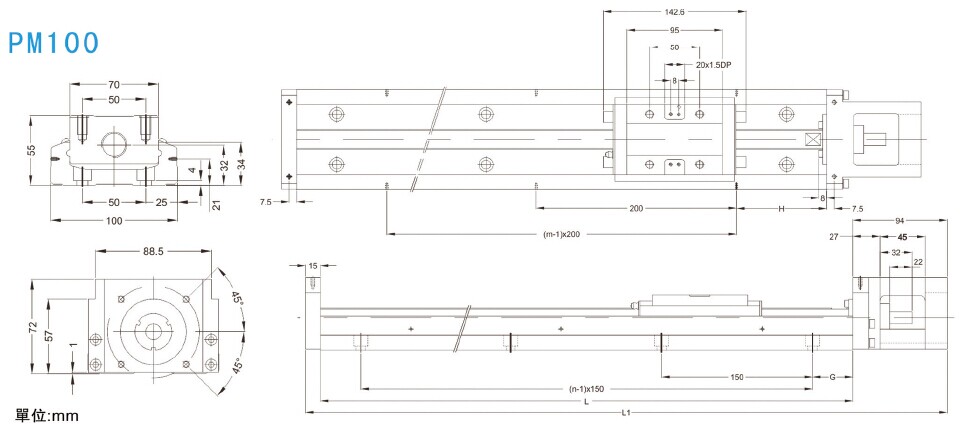

| Rail Length L2(mm) |
Total Length L1(mm) |
Maximum Stroke(mm) | G(mm) | H(mm) | n | m | Mass(kg) | ||
| A1 Block | A2 Block | A1 Block | A2 Block | ||||||
| 980 | 1089 | 828 | 700 | 40 | 90 | 7 | 5 | 18.6 | 20.3 |
| 1080 | 1189 | 928 | 800 | 15 | 40 | 8 | 6 | 20.3 | 22 |
| 1180 | 1289 | 1028 | 900 | 65 | 90 | 8 | 6 | 22 | 23.7 |
| 1280 | 1389 | 1128 | 1000 | 40 | 40 | 9 | 7 | 23.6 | 25.3 |
| 1380 | 1489 | 1228 | 1100 | 15 | 90 | 10 | 7 | 25.3 | 27 |
