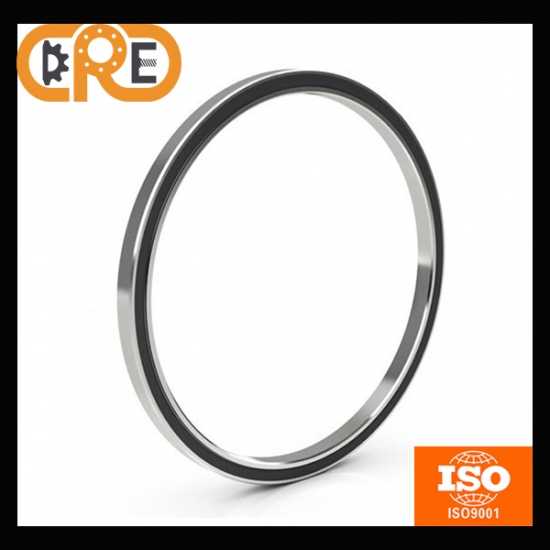

A Conrad assembled thin bearing designed primarily for application of radial load-deep ball grooves also permit application of thrust load in either direction--often used in conjunction with another bearing.
Bearing Number | Dimensions in Inches | Radial Capacity (lbs.) | Weight in Pounds |
|||||
Bore | outside Dia. |
width | Land Dia. L1 |
Land Dia. L2 |
Static | Dyn. | ||
JHA10CLO | 1 | 1.375 | 0.25 | 1.108 | 1.274 | 290 | 150 | 0.035 |
JHA15CLO | 1.5 | 1.875 | 0.25 | 1.608 | 1.774 | 400 | 180 | 0.052 |
JHA17CLO | 1.75 | 2.125 | 0.25 | 1.858 | 2.204 | 460 | 200 | 0.06 |
JA020CPO | 2 | 2.5 | 0.25 | 2.148 | 2.356 | 680 | 320 | 0.1 |
JB020CPO | 2 | 2.625 | 0.3125 | 2.136 | 2.362 | 930 | 450 | 0.15 |
JA025CPO | 2.5 | 3 | 0.25 | 2.648 | 2.856 | 830 | 360 | 0.12 |
JB025CPO | 2.5 | 3.125 | 0.3125 | 2.636 | 2.862 | 1140 | 520 | 0.19 |
JA030CPO | 3 | 3.5 | 0.25 | 3.148 | 3.356 | 990 | 410 | 0.14 |
JB030CPO | 3 | 3.625 | 0.3125 | 3.136 | 3.362 | 1340 | 580 | 0.22 |
JA035CPO | 3.5 | 4 | 0.25 | 3.648 | 3.856 | 1140 | 450 | 0.17 |
JB035CPO | 3.5 | 4.125 | 0.3125 | 3.636 | 3.862 | 1540 | 630 | 0.27 |
JA040CPO | 4 | 4.5 | 0.25 | 4.148 | 4.356 | 1290 | 480 | 0.19 |
JB040CPO | 4 | 4.625 | 0.3125 | 4.136 | 4.362 | 1750 | 690 | 0.3 |
JU040CPO | 4 | 4.75 | 0.5 | 4.15 | 4.547 | 2100 | 880 | 0.55 |
JA042CPO | 4.25 | 4.75 | 0.25 | 4.398 | 4.606 | 1370 | 500 | 0.2 |
JB042CPO | 4.25 | 4.875 | 0.3125 | 4.386 | 4.662 | 1830 | 710 | 0.31 |
JU042CPO | 4.25 | 5 | 0.5 | 4.4 | 4.797 | 2220 | 920 | 0.58 |
JA045CPO | 4.5 | 5 | 0.25 | 4.648 | 4.856 | 1440 | 520 | 0.21 |
JB045CPO | 4.5 | 5.125 | 0.3125 | 4.636 | 4.862 | 1950 | 740 | 0.34 |
JU045CPO | 4.5 | 5.25 | 0.5 | 4.65 | 5.047 | 230 | 950 | 0.61 |
JA047CPO | 4.75 | 5.25 | 0.25 | 4.898 | 5.106 | 1520 | 540 | 0.22 |
JB047CPO | 4.75 | 5.375 | 0.3125 | 4.886 | 5.162 | 2030 | 760 | 0.35 |
JU047CPO | 4.75 | 5.5 | 0.5 | 4.9 | 5.295 | 2460 | 980 | 0.65 |
JA050CPO | 5 | 5.5 | 0.25 | 5.148 | 5.356 | 1590 | 560 | 0.23 |
JB050CPO | 5 | 5.625 | 0.3125 | 5.136 | 5.362 | 2150 | 790 | 0.37 |
JU050CPO | 5 | 5.75 | 0.5 | 5.15 | 5.545 | 2590 | 1010 | 0.68 |
JA055CPO | 5.5 | 6 | 0.25 | 5.648 | 5.856 | 1750 | 590 | 0.25 |
JB055CPO | 5.5 | 6.125 | 0.3125 | 5.636 | 5.862 | 2360 | 840 | 0.4 |
JU055CPO | 5.5 | 6.25 | 0.5 | 5.65 | 6.042 | 2830 | 1080 | 0.74 |
JA060CPO | 6 | 6.5 | 0.25 | 6.148 | 6.356 | 1900 | 630 | 0.28 |
JB060CPO | 6 | 6.625 | 0.3125 | 6.136 | 6.362 | 2560 | 890 | 0.44 |
JU060CPO | 6 | 6.75 | 0.5 | 6.15 | 6.542 | 3070 | 1140 | 0.81 |
JA065CPO | 6.5 | 7 | 0.25 | 6.648 | 6.856 | 2050 | 660 | 0.3 |
JB065CPO | 6.5 | 7.125 | 0.3125 | 6.636 | 6.862 | 2760 | 930 | 0.47 |
JU065CPO | 6.5 | 7.25 | 0.5 | 6.65 | 7.037 | 3315 | 1200 | 0.87 |
JU070CPO | 7 | 7.75 | 0.5 | 7.15 | 7.537 | 3550 | 1250 | 0.93 |
JU075CPO | 7.5 | 8.25 | 0.5 | 7.65 | 8.037 | 3790 | 1310 | 0.99 |
JU080CPO | 8 | 8.75 | 0.5 | 8.15 | 8.537 | 4030 | 1360 | 1.06 |
JU090CPO | 9 | 9.75 | 0.5 | 9.15 | 9.535 | 4510 | 1470 | 1.18 |
JU100CPO | 10 | 10.75 | 0.5 | 10.15 | 10.535 | 4990 | 1570 | 1.31 |
JU110CPO | 11 | 11.75 | 0.5 | 11.15 | 11.535 | 5470 | 1670 | 1.43 |
JU120CPO | 12 | 12.75 | 0.5 | 12.15 | 12.535 | 5950 | 1770 | 1.56 |
JG120CPO | 12 | 14 | 1 | 12.554 | 13.602 | 21340 | 8510 | 9.3 |
JG140CPO | 14 | 16 | 1 | 14.554 | 15.602 | 24620 | 9360 | 10.8 |
JG160CPO | 16 | 18 | 1 | 16.554 | 17.602 | 27910 | 10180 | 12.3 |
JG180CPO | 18 | 20 | 1 | 18.554 | 19.602 | 31190 | 10960 | 13.7 |
JG200CPO | 20 | 22 | 1 | 20.554 | 21.602 | 34470 | 11720 | 15.8 |
JG250CPO | 25 | 27 | 1 | 25.554 | 26.602 | 42680 | 13510 | 19.5 |
JG300CPO | 30 | 32 | 1 | 30.554 | 31.602 | 50890 | 15190 | 23.3 |
JG350CPO | 35 | 37 | 1 | 35.554 | 36.602 | 59100 | 16790 | 27.1 |
JG400CPO | 40 | 42 | 1 | 40.554 | 41.602 | 67310 | 18310 | 30.8 |
